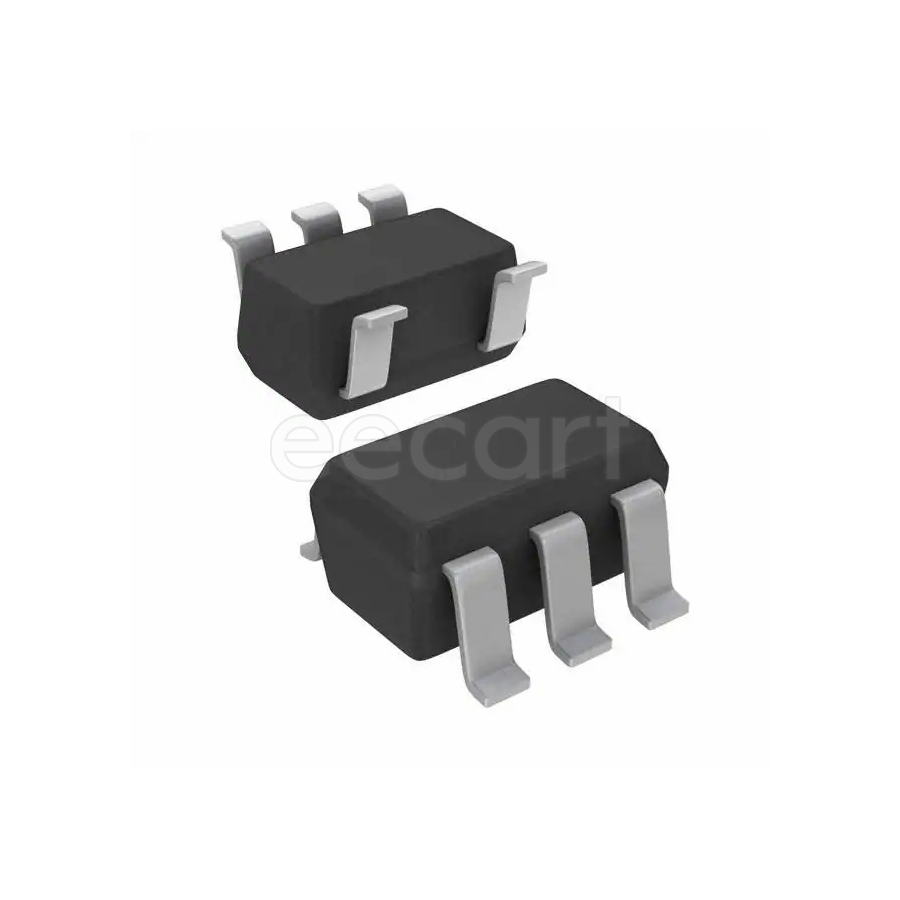

ZXSC380FHTA
Manufacturer:
Diodes Incorporated
Mfr.Part #:
ZXSC380FHTA
Datasheet:
Description:
LED Drivers SOT-23 SMD/SMT 18 mA
| Parameter | Value |
|---|---|
| Length | 3.05 mm |
| Width | 1.4 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | 0 °C |
| Number of Pins | 3 |
| Height | 1 mm |
| Radiation Hardening | No |
| REACH SVHC | No SVHC |
| Frequency | 160 kHz |
| Output Voltage | 20 V |
| Max Power Dissipation | 450 mW |
| Max Supply Voltage | 6 V |
| Min Supply Voltage | 800 mV |
| Power Dissipation | 450 mW |
| Max Supply Current | 20 mA |
| Topology | Boost |
| Number of Outputs | 1 |
| Nominal Supply Current | 20 mA |
| Output Current per Channel | 80 mA |
| Number of Segments | 1 |
| Internal Switch | Yes |
| Type | DC DC Regulator |
| Output Current | 18 mA |
| RoHS | Compliant |
| Packaging | Reel |
Stock: 1797
Distributors
pcbx
pcbxUnit Price$0.33466
Ext.Price$0.33466
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.33466 | $0.33466 |
| 10 | $0.30499 | $3.04990 |
| 25 | $0.29575 | $7.39375 |
| 50 | $0.28679 | $14.33950 |
| 100 | $0.27810 | $27.81000 |
| 300 | $0.27341 | $82.02300 |
| 500 | $0.26879 | $134.39500 |
| 1000 | $0.26471 | $264.71000 |
